دستهبندی: تجهیزات شبکه
پهنای باند:5.6Gbps
پورت POE:8 پورت
پورت SFP:1 پورت Uplink گیگ SFP
پورت آپلینگ گیگ:1 پورت Uplink گیگ اترنت
سوئیچ PoE صنعتی اچ ار یو ای HRUI HR500-AF-811GS کپی
برند:برند HRUI
مشخصات
پهنای باند
5.6Gbps
پورت POE
8 پورت
پورت SFP
1 پورت Uplink گیگ SFP
پورت آپلینگ گیگ
1 پورت Uplink گیگ اترنت
دارای
– پشتیبانی پورت های 2-1 از خروجی 90 وات
توضیحات

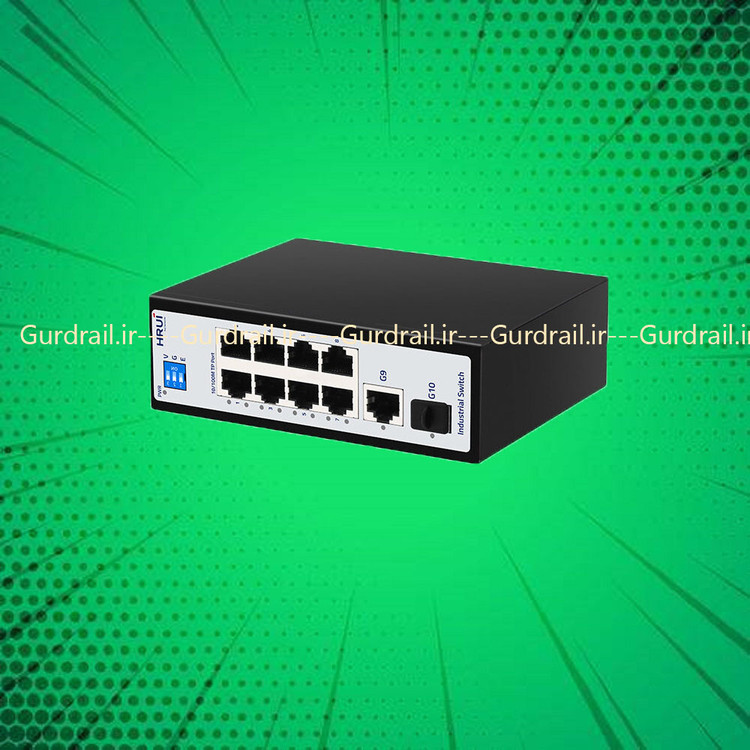

سوئیچ PoE صنعتی اچ ار یو ای HRUI HR500-AF-811GS
– سوئیچ 8 پورت 10/100M PoE و 1 پورت Uplink گیگ اترنت و 1 پورت Uplink گیگ SFP
– سوئیچ PoE صنعتی گیگ
– پشتیبانی پورت های 2-1 از خروجی 90 وات
– 48 ماه وارانتی بی قید و شرط (24 ماه گارانتی تعویض + 24 ماه گارانتی تعمیر)
| Power | DC 48～55V |
| Ethernet | 8* 10/100M PoE Ports (Port 1-2 support 90W)
1* Gigabit Uplink port 1* Gigabit SFP Port |
| Performance | |
| Bandwidth | 5.6Gbps |
| Pack forwarding rate | 4.166Mpps |
| MAC address | 8K |
| Jumbo frame | 9.6Kbytes |
| Transfer mode | Storage & forward |
| MTBF | 100000 Hours |
| Standards | |
| Network protocol | IEEE802.3
IEEE802.3u IEEE802.3z |
| PoE standard | PoE standard: IEEE802.3af /IEEE802.3at
Single port max: 15.4 W (IEEE 802.3af) Single port max: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at self-adaptive PoE port output voltage: DC 48-55V PoE power supply wire core:1/2+ ; 3/6- |
| Indsutry standard | EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
| Network Medium | 10BASE-T: Cat3, 4, 5 UTP (≤100 m)
100BASE-TX: Cat5 or above UTP (≤100 m) 1000BASE-TX: Cat5 or above UTP (≤100 m) |
| Optical Medium | Multimode fiber: 850nm, 1310nm transmission distance: 550m/2Km
Single-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120km |
| Certificate | |
| Safety Certificate | CE, FCC, RoHS |
| Environment standard | |
| Working environment | Working temperature: -40～75℃
Storage temperature: -40～85℃ Humidity: 5%~95 % (non-condensing) |
| Physical specification | |
| Structure size | Product dimension: 138*108*44 mm
Package dimension: 245*190*60mm Product N.W: 0.646 KG Product G.W: 0.781 KG (without power) |
| Packaging info | Carton MEAS: 520*320*400mm
Packing Qty: 20 PCS Packing Weight: 17.62 KG |
| Power voltage | Voltage input: DC48～55V
Power cable :4 PIN Industrial terminal (redundancy V1+V1-, V2+V2-)/ DC 2.1 (DC 2.1 cannot be used together with V1 and V2) |
| Packaging List | 1. Industrial Switch: 1 PC
2. User Manual: 1 PC 3. Certification: 1 PC 4. Pull-arm: 1 PC |
| Indicator | |
| LED Indicator | PWR, 1-9 green light, G10 |
| PWR | On: Powered on
Off: Powered off |
| 1-9 green light | Slow flashing: 10/100M link normal
Off: Link off Fast flashing: Link data transmitting |
| G10 | On: Optical connecting properly
Off: Optical off Flashing: Optical data transmitting |
| DIP Function | V, G, E (Up open, down close) |
| V | V: VLAN mode, ports 1-8 are isolated and can communicate with port 9 and 10 |
| G | G: Normal mode |
| E | E: Extend mode, ports 1-8 are reduced to 10M and can be extended to 250m |
