Product name

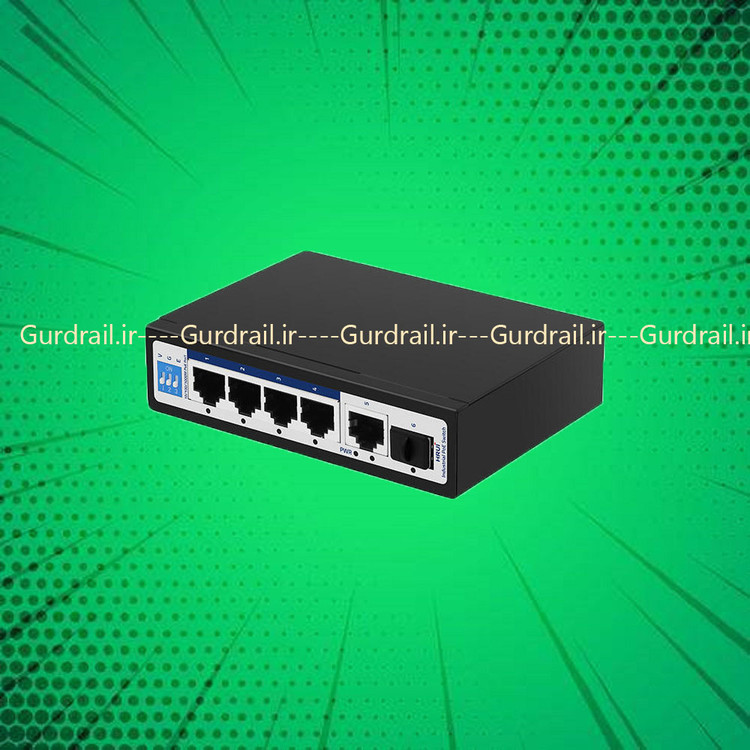

6 Ports Gigabit Intelligent Industrial PoE Switch

Model

HR500-AFG-411S

Connector Type

4 * gigabit PoE ports + 1* gigabit uplink Ethernet por t + 1*gigabit SFP port

Network Protocols

IEEE802.3

IEEE802.3i

IEEE802.3u

IEEE802.3ab

IEEE802.3z

POE Parameters

PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)

Each port Max: 15.4W (IEEE 802.3af)

Each port Max: 30W (IEEE 802.3at)

PoE compatibility: IEEE 802.3af/at adaptive

PoE port output: DC 52V

PoE power supply core: 1/2+ ; 3/6-

10BASE-T: Cat5 or more UTP(≤100 m)

Network Media

100BASE-TX: Cat5 or more UTP(≤100 m)

1000BASE-TX: Cat5 or more UTP(≤100 m)

Fiber Media

Multi-mode: 850nm, 1310nm.  transmission distance: 550m/2Km

Single-mode: 1310nm, 1550nm. transmission distance: 20/40/60/80/100/120Km

Dial

1,  2 both off

Standard mode: 1-6 port shared exchange communication

1on,  2off

VLAN isolation mode: 1-4 ports are isolated from each other and cannot communicate; 5-6 ports are interoperable; 1-4 can only communicate with ports 5 and 6

1off,  2on

Extend mode: The 4th port is at a 10M rate,  and the other ports are at a 1000M rate.1-6 port shared exchange communication

1,  2 both on

VLAN+10M mixed model: The 4th port is at a 10M rate,  and the other ports are at a 1000M rate.1-4 ports are isolated from each other and cannot communicate; 5-6 ports are interoperable; 1-4 can only communicate with ports 5 and 6

LED indicator

PWR
(Power supply indicator Red )

Lighting: Powered

Un-Light: No Power

SW
(DIP indicator Green)

1

2

Indicate

Mode

off

off

No light

Standard swapping

on

off

Lighting

VLAN

off

on

Slow flash

The 4th port  at a 10M rate

on

on

Quick flash

10M+ VLAN

1-6 ports
(Green)

Lighting: Connecting

Flashing: Data Transmit

Un-Light: Disconnect

Power Supply

Power input: DC48～55V

power supply wiring: 4 PIN terminal block (redundancy V1+V1-, V2+V2-)

Working Environment

Operating Temperature: -40～85℃

Storage Temperature: -40～85℃

Humidity: 5%~95 %( non-condensing)

Industry Standard

EMI: FCC Part 15,  CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)

Mechanical Structure

Shell protect grade: IP40

Installation: DIN rail

N.W: 0.409KG         G.W:  0.489KG(without power supply)

Product Dimension (L×W×H): 119MM*87MM*28MM

Package Dimension (L×W×H): 175MM*130MM*55MM

Package Contents

Industrial Switch: 1 unit

User Guide: 1unit

Certificate warranty card: 1unit

Certification

CE, FCC, CCC, RoHS

MTBF

100, 000 hours

Warranty

5 years

Hardware parameter

Bandwidth

12Gbps

Cache

1M

Chipset

88E6176

Package Forwarding Rate

8.928Mpps

MAC address

8K

Forwarding mode

Store-and-forward
