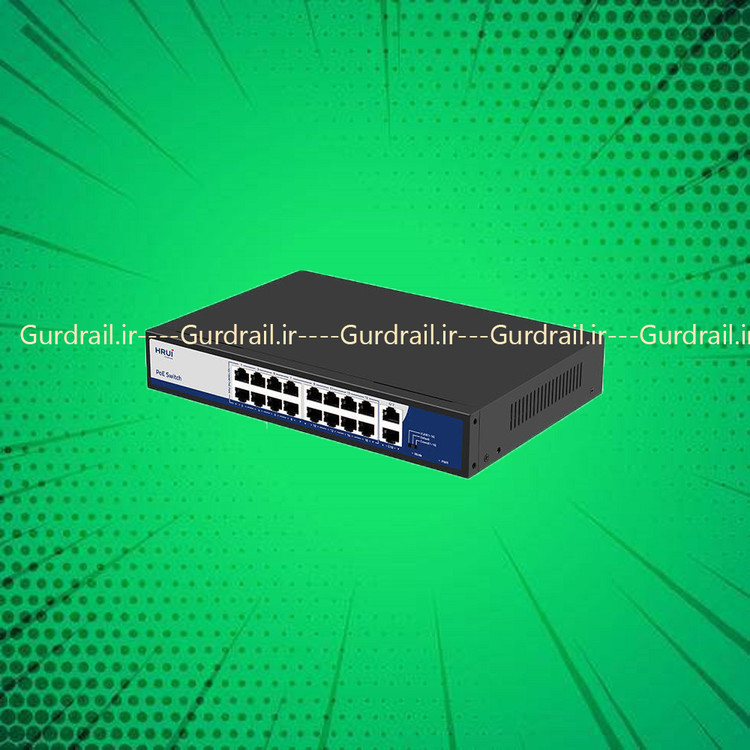

سوئیچ PoE اچ ار یو ای HRUI HR902-AF-162G-300

– سوئیچ 16 پورت 10/100Mbps PoE و 2 پورت Uplink گیگ
– سوئیچ PoE
– توان کل 300 وات
– 30 ماه وارانتی بی قید و شرط

Physical Features
Dimension	Product Dimension：26818144mm Package Dimension：31226284mm N. W：1.29KG(200w)/1.44KG(300w) G.W：1.77KG(200w)/1.92KG(300w)
Packing Info	Carton MEAS：540435332mm Packing Qty：10 PCS Packing Weight：18.7KG(200w)/20.2KG(300w)
Power Voltage	Input Voltage ：AC 100-240 V Power supply：52V 3.8A / 52V 5.76A
power	Product power: maximum 10W / maximum 10W POE power: maximum 180W / maximum 280W
Packing list	Switch 1 pc, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, Brackets 1 pair
Indicators
LEDs	PWR（power supply），Mode（DIP），1-18 Green Light（Link&Data）
PWR	Lighting：Powered
PWR	Un-Light：No Power
Mode	Lighting：VLAN（Port Isolation）
	Un-Light：Default（General mode）
	Flash：Extend（Extend）
1-18 Green Light	Lighting：Connecting
	Un-Light：Disconnect
	Flashing：Data Transmit
VLAN	Port isolation mode. In this mode, the PoE ports (1-16) of the switch cannot communicate with each other, and can only communicate with the UP-link port.
Default	OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive;
Extend	Extend : Link extension mode, 1-16 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
