دستهبندی: تجهیزات شبکه
پورت آپلینگ 100: 8 عدد
پهنای باند: 20GBPS
پورت SFP: 2 عدد
توان خروجی: 120

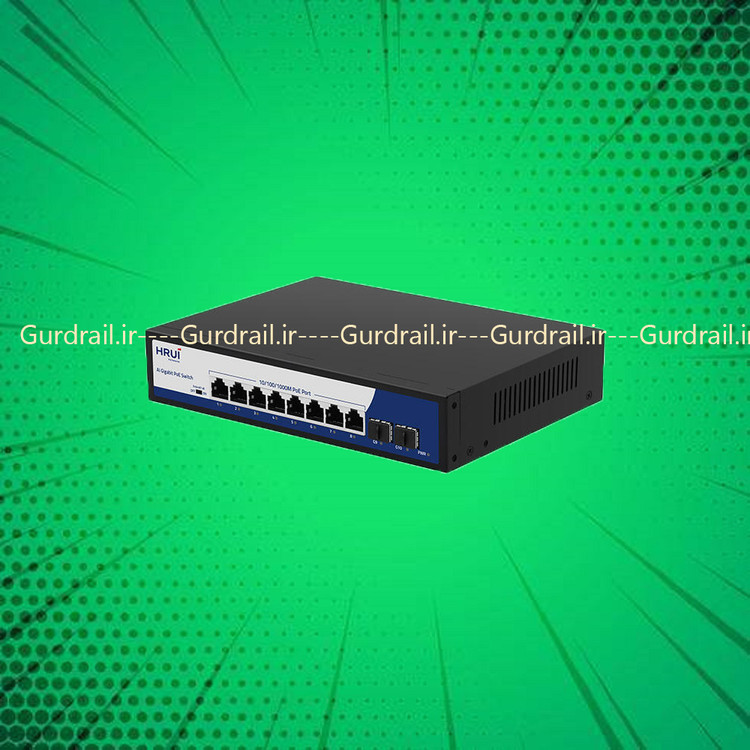

سوئیچ PoE گیگ اچ ار یو ای HRUI HR900-AFG-82NS
برند:برند HRUI
دوسال تعویض
مشخصات
پورت آپلینگ 100
8 عدد
پهنای باند
20GBPS
پورت SFP
2 عدد
توان خروجی
120
دارای
Watch dog
توضیحات
سوئیچ PoE گیگ اچ ار یو ای HRUI HR900-AFG-82NS
– سوئیچ 8 پورت PoE گیگ و 2 پورت SFP
– سوئیچ گیگ PoE
– توان کل 120 وات
– 30 ماه وارانتی بی قید و شرط
– ایران کد 2233120766280051
| Power | AC INPUT (100-240 V) |
| Ethernet | 8* Gigabit PoE Ports
2* Gigabit SFP Ports |
| Chipset | 2*RTL8367S
RTL8238B |
| Performance | |
| Bandwidth | 20Gbps |
| Packet Forward Rate | 14.88Mpps |
| Package Cache | 448Kbit |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Forwarding Mode | Store and forward |
| MTBF | 100000 Hours |
| Standard | |
| Network Protocol | IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) |
| PoE Standard | IEEE802.3af (15.4W)
IEEE802.3at (30W) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), IEN61000-4-5 (Surge) |
| Network medium | 10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m)
100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) 1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) |
| Optical Medium | Multimode optical fiber: 50/125, 62.5/125, 100/140um
Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Certification | |
| Safety Certificate | CCC/CE/FCC/UL/ROHS |
| Environment Standard | |
| Working Environment | Working temperature: -10~50°C
Storage temperature: -40~70°C Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing |
| Physical Specification | |
| Structure Size | Product Dimensions: 220*161*44mm
Package Dimensions: 315*215*85mm Product N.W: 0.88kg Product G.W: 1.38kg |
| Packing Info | Carton Dimensions: 445*445*335mm
Packing Quantity: 10 PCS Packing Weight: 14.8KG |
| Power Voltage | Input Voltage: AC 100-240 V 50-60Hz
Supply Power: 52V2.3A |
| Power Consumption | Product power: ≤ 10W
POE power: ≤ 110W |
| Package List | Switch 1 pc, Power cord 1 pc, User manual 1 pc, Certification 1 pc |
| Indicator | |
| LED Indicator | PWR (Power)，1-10 Green Light (Link&Data) |
| PWR | On: Powered on
Off: Powered off |
| 1-10 Green Light (Link&Data) | On: Link normal
Off: Link blocked Flashing: Data transmitting |
| DIP Switch | Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled
Extend: Link extension mode, 7-8 ports force 10M, link 250M (enable POE watchdog) |
