Power

Input: AC 100-240V, 50/60Hz

Ethernet

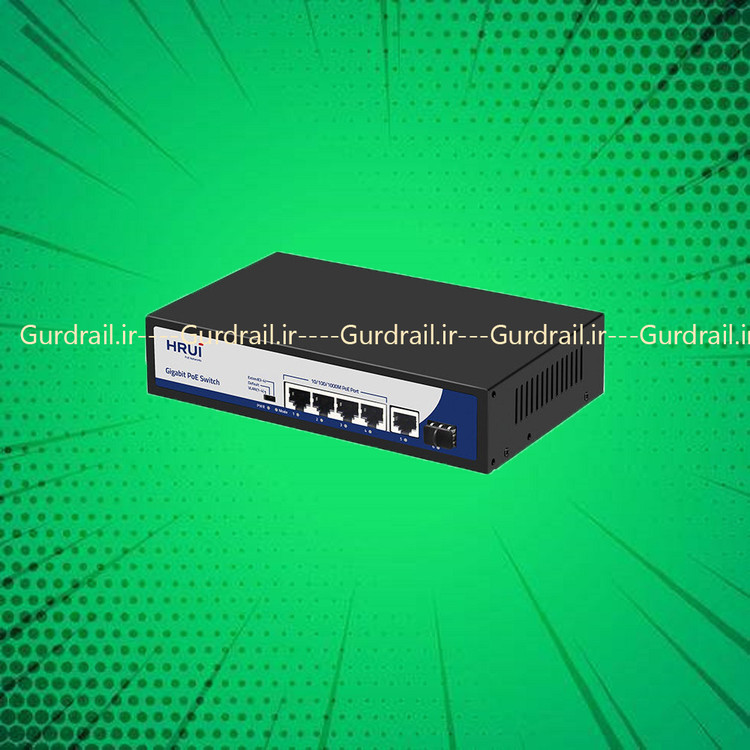

4*10/100/1000M PoE ports + 1*Gigabit Uplink RJ45 Port + 1* Gigabit SFP port

Performance

Switching Capacity

12Gbps

Forwarding Rate

8.928Mpps

Packet Buffer

1Mb

MAC Address

2K

Jumbo Frame

9216bytes

Transfer Mode

Store and forward

MTBF

100000  hours

Standard

Network protocol

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x

PoE Protocol

IEEE802.3af (15.4W)

IEEE802.3at (30W)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS:  EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)

Network Medium

10BASE-T:  Cat 3, 4, 5 UTP(≤100 meter)

100BASE-TX:  Cat5 or more UTP (≤100 meter)

1000Base-TX :  Cat5 or more UTP/STP(≤100 meter)

Optical Media

Multimode fiber:  50/125, 62.5/125, 100/140um

Single mode fiber:  8/125, 8.7/125, 9/125, 10/125um

Protection

Certificate

CE, FCC, RoHS

Environment

Environment

Working Temperature: -10~50°C

Storage Temperature: -40~85°C

Working Humidity: 10%~90%，non-condensing

Storage Temperature: 5%~90%，non-condensing

Working Height: Maximum 10,000 feet

Storage height: Maximum 10,000 feet

Physical Features

Dimension

Product Dimension (L*W*H):  200*118*44mm

Package Dimension (L*W*H):  245*190*60mm

N.W: 0.6kg

G.W: 0.9kg

Packing Info

Carton MEAS: 505*320*400mm

Packing Qty: 20 units

Packing Weight: 19KG

Power Voltage

Input Voltage : AC 100-240 V

Power supply: 52V2.3A

Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc

Indicators

DIP Switch

VLAN: Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port

Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100/1000M adaptive

Extend: Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M

LEDs

PWR(power supply)，Mode(DIP)，1-6(Link&Data)
