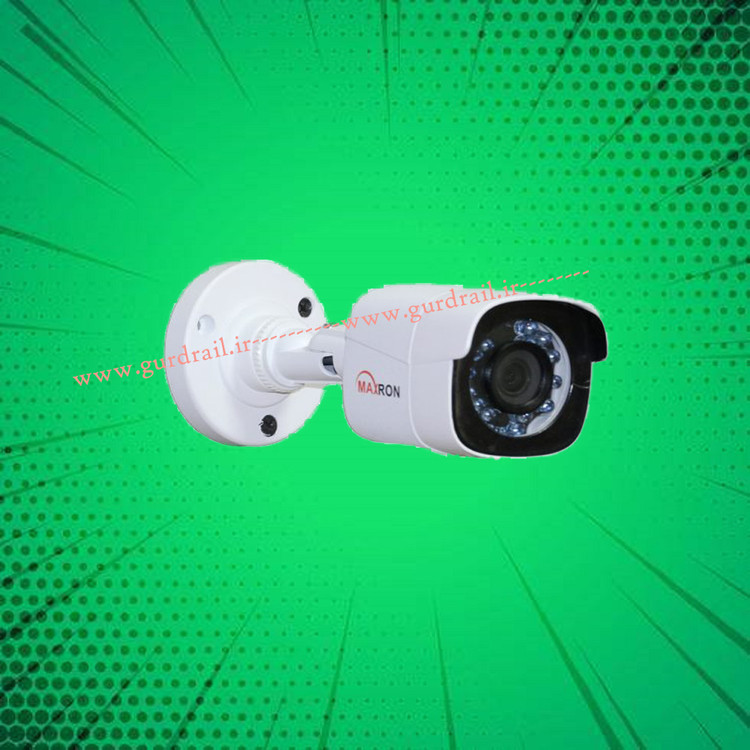

دوربین مداربسته مکسرون MHT-BR2-3150AP
دوربین مداربسته انالوگ مکسرون یک مگا پیکسل.دارای رزولیشن هفتصد وبیست پی.دارای لنز دو هشت میلی متر .دارای لوکس نوری یک صدم.دارای لوکس نوری صفر .دارای عمق دید در شب بیست متر .ضد واب وگرد وغبار .دوربین بالت مناسب برای فضای خارجی.
دوربین مداربسته مکسرون MHT-BR2-3150AP
۱ Megapixel high-performance CMOS Analog HD output, up to 720P resolution 720p@25fps/720p@30fps 2.8mm Fixed lens 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR ICR, DNR, Smart IR Up to 20m IR distance IP66 weatherproof
دوربین مداربسته مکسرون MHT-BR2-3150AP
- Camera
- Lens۲.۸ mm, 3.6 mm, 6 mm fixed lens
- Horizontal Field of View۱۰۳.۵۵° (۲.۸ mm), 82.63° (۳.۶ mm), 54.38° (۶ mm)
- Lens MountM12
- Day & NightIR cut filter
- SynchronizationInternal synchronization
- Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
- Image Sensor۱.۰ megapixel progressive scan CMOS
- Signal Systنمایندگی دوربین مداربسته مکسرون
- emPAL/NTSC
- Frame RatePAL: 720@25fps,NTSC: 720p@30fps
- Resolution۷۲۰ (H) ×۹۶۰ (V)
- Min. illumination۰.۰۱ Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Menu
- AGCLow/middle/high
- Day/Night ModeSmart/color/BW(Black and White)
- Backlight CompensationYes
- DWDR (Digital Wide Dynamic Range)Yes
- LanguageEnglish, Chinese
- FunctionsBrightness, Sharpness, DNR, Mirror
دوربین مداربسته مکسرون MHT-BR2-3150AP
- Interface
- Video Output۱ HD analog output
- General
- Operating Condition-۴۰ °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Power Supply۱۲ VDC ± ۳۰%/PoC.af
- Power ConsumptionMax. 3 W
- MaterialFront cover: Mental ,Main Body: Plastic,Bracket: Metal
- IR RangeUp to 20 m
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- Dimensions۸۶.۷ mm × ۸۱.۶ mm × ۲۲۶ mm(3.4″ × ۳.۲″ × ۸.۹″)
- WeightApprox. 430 g (0.95 lb)
- Ingress ProtectionIP66
۱ MP Fixed Bullet Camera
- ۱ MP PoC bullet camera
- EXIR 2.0: advanced infrared technology with 20 m IR distance
- Water and dust resistant (IP66)
- Transmits both HD video and power over the same coaxial cable
